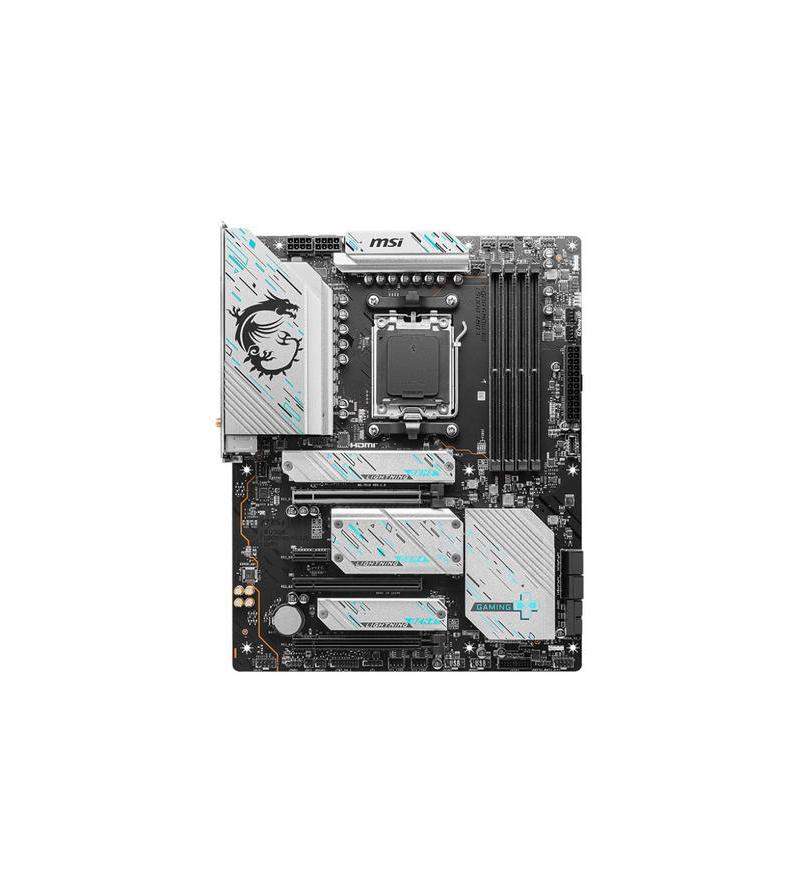

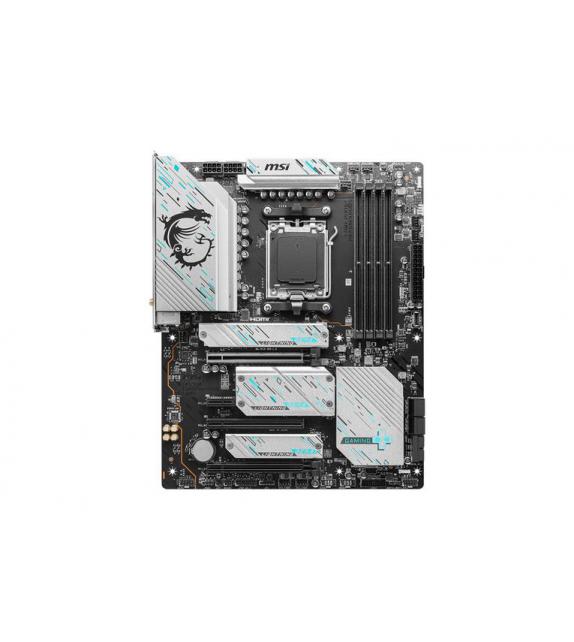

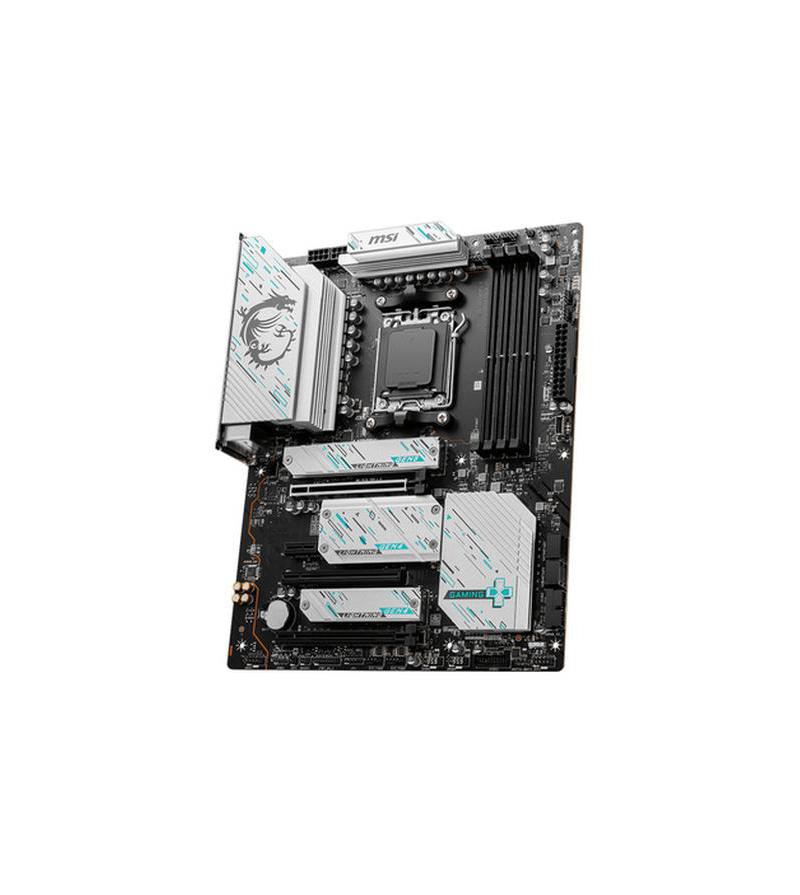

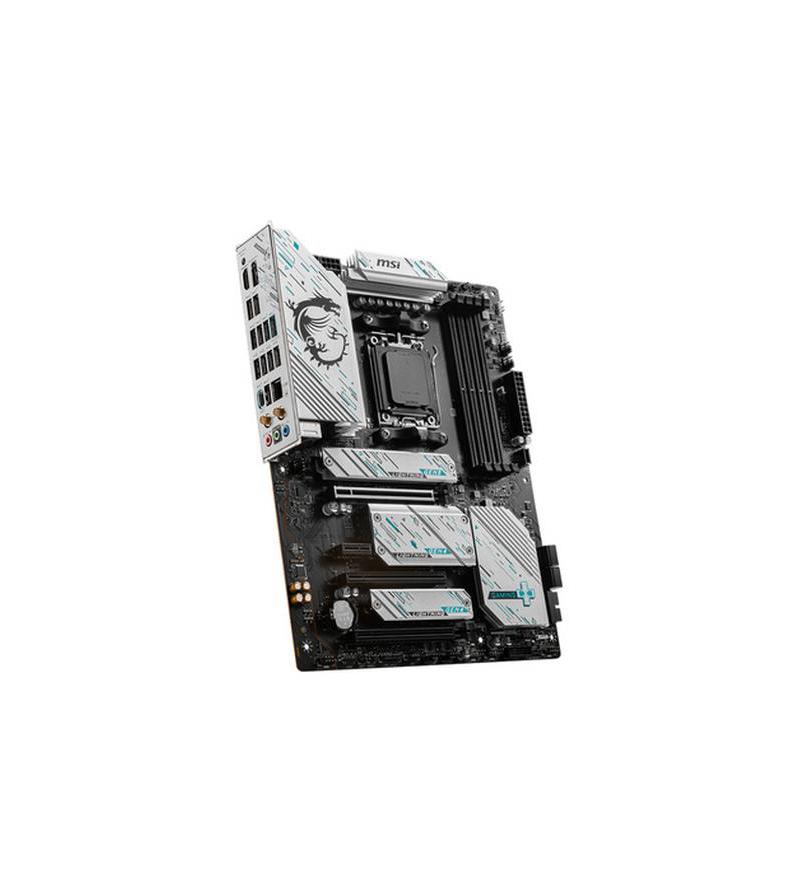

7E16
Produttore MICRO-STAR
Questo prodotto non è al momento disponibile
Attenzione: Ultimi articoli in magazzino!
Data di disponibilità: 0000-00-00
Stampo per waffle | AMD |
Tipi di memoria supportati | DDR5-SDRAM |
Numero di slot di memoria | 4 |
RAM massima supportata | 192 GB |
Connettori USB 2.0 | 4 |
Processore | |
Produttore processore | AMD |
Presa per processore | Socket AM5 |
Memoria | |
Tipi di memoria supportati | DDR5-SDRAM |
Numero di slot di memoria | 4 |
RAM massima supportata | 192 GB |
tipo di slot di memoria | DIMM |
Canali di memoria | Dual-channel |
Compatibilità ECC | Non-ECC |
Controller di archiviazione | |
Interfacce dell'unità di archiviazione s | M.2, SATA III |
Supporto RAID | Sì |
Livelli RAID | 0, 1, 10 |
Grafica | |
Scheda grafica integrata | No |
I/O interni | |
Connettori USB 2.0 | 4 |
Connettori USB 3.2 Gen 1 (3.1 Gen 1) | 4 |
Connettori USB 3.2 Gen 2 (3.1 Gen 2) | 1 |
Numero di connettori SATA III | 4 |
Numero di connettori SATA II | 0 |
Numero di connettori SATA | 0 |

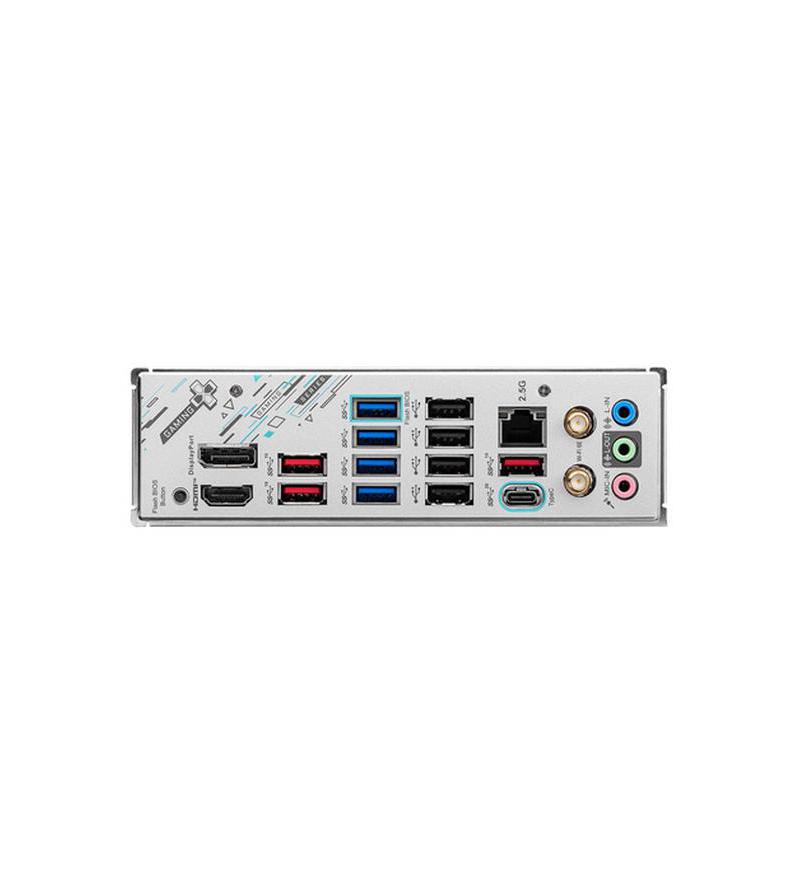

Pannello posteriore porte I/O | |
Quantità porte USB 2.0 | 0 |
Quantità di porte USB 3.2 Gen 1 (3.1 Gen | 4 |
Quantità di porte USB 3.2 Gen 1 (3.1 Gen | 0 |
Quantità di porte USB 3.2 Gen 2 (3.1 Ge | 3 |
Quantità di porte USB 3.2 Gen 2 (3.1 Gen | 0 |
Quantità porte Ethernet LAN (RJ-45) | 1 |
Quantità porte HDMI | 1 |
Quantità di porte USB 3.2 Gen 2x2 Tipo C | 1 |
Versione HDMI | 2.1 |
Quantità DisplayPorts | 1 |
versione DisplayPort | 1.4 |
Porta uscita S/PDIF | Sì |
Collegamento in rete | |
Wi-Fi | Sì |
Collegamento ethernet LAN | Sì |
Tipo di interfaccia Ethernet | 2.5 Gigabit Ethernet |
Controller LAN | Realtek RTL8125-BG |
Wi-Fi standard | Wi-Fi 6E (802.11ax) |
Standard Wi-Fi | 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax) |
Bluetooth | Sì |
Versione Bluetooth | 5.3 |
Caratteristiche | |
Componente per | PC |
Fattore di forma scheda madre | ATX |
Famiglia di chipset per scheda madre | AMD |
Chipset scheda madre | AMD X670 |
Sistema audio | 7.1 canali |
Chip audio | Realtek ALC897 |
Colore del prodotto | Alluminio, Nero |
Sistema operativo Windows supportato | Windows 10 x64, Windows 11 x64 |
Slot espansione | |
Slot PCI Express x16 (Gen 4.x) | 1 |
Slot PCI Express x16 (Gen 5.x) | 2 |
Numero di slot di M.2 (M) | 4 |
BIOS | |
Tipo BIOS | UEFI AMI |
Dimensione memoria BIOS | 256 Mbit |
Versione ACPI | 6.4 |
Versione System management BIOS (SMBIOS) | 3.5 |
Dimensioni e peso | |
Larghezza | 243,8 mm |
Profondità | 304,8 mm |
Altre caratteristiche | |
quantità porte mSATA | 0 |
