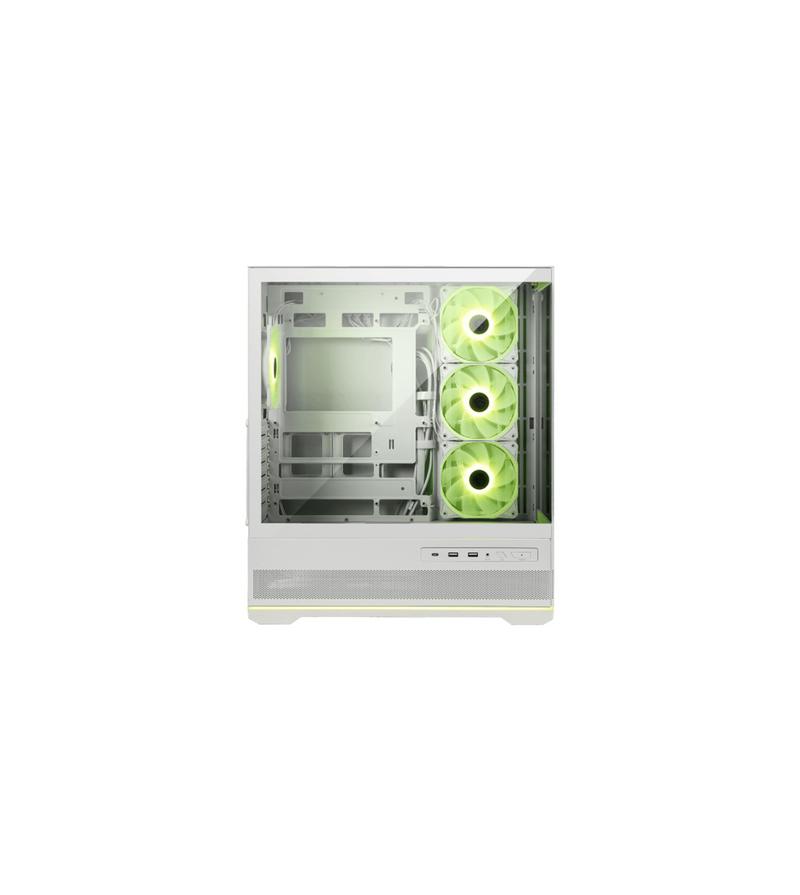

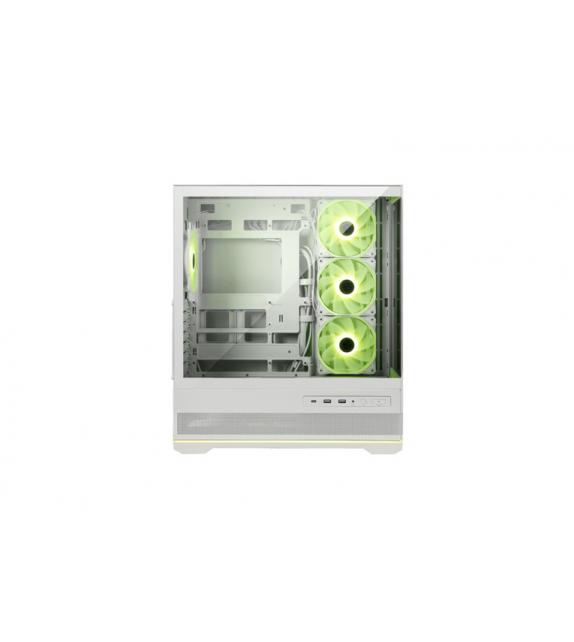

CABINET ATX MINI TOWER MSI MAG PANO 110R PZ WHITE

CABINET ATX MINI TOWER MSI MAG PANO 110R PZ WHITE
Specifications
Product name: MAG PANO 110R PZ / white
Case form factor: Mid-tower
Motherboard form factor support (regular): ATX / Micro-ATX / Mini-ITX
Motherboard form factor support (back-connect): ATX / Micro-ATX
I/O ports:
1 x USB 20Gbs Type-C
2 x USB 5Gbs Type-A
1 x Audio-out / Mic-in
1 x LED button
1 x Power button
Drive mount support: 2 x 2.5", 2 x 3.5", 2 x 2.5"/3.5" combo
Expansion slots: 7
Maximum GPU length: 400 mm / 15.75 inches
Maximum CPU cooler height: 160 mm / 6.30 inches
Power supply support: ATX
Maximum PSU length: 200 mm / 7.87 inches
Fan size support (top): 3 x 120 mm / 2 x 140 mm
Fan size support (front): NA
Fan size support (rear): 1 x 120 mm
Fan size support (side): 3 x 120 mm / 2 x 140 mm
Fan size support (bottom): 3 x 120 mm (above the power shroud)
Pre-installed fan size (side): 3 x 120 mm
Pre-installed fan size (rear): 1 x 120 mm
Pre-installed fan type (side): 3 x ARGB fan (reverse blades fan)
Pre-installed fan type (rear): 1 x ARGB fan
Radiator size support (top): 120 / 140 / 240 / 280 / 360 mm
Radiator size support (front): NA
Radiator size support (rear): 120 mm
Radiator size support (side): NA
Radiator size support (bottom): NA
Dimensions w/o feet/protrusions/screws (DxWxH): 420 x 225 x 485 mm / 16.54 x 8.86 x 19.09 inches
Connections
1 x USB 20Gbs Type-C
2 x USB 5Gbs Type-A
mic in / audio out
LED button
power button


(partnumber: 306-7G28W21-JA4)
